Flat Laser Cutting

Flat Laser Cutting

Our flat laser cutting systems allow for fully automated, lights-out production of all sorts of material thicknesses and types including Aluminum, steel, High Hardness Steel and more.  From thin-gauge mild steel to military grade armored plate (MILL 46100), we’ve got the capability to handle any size job.

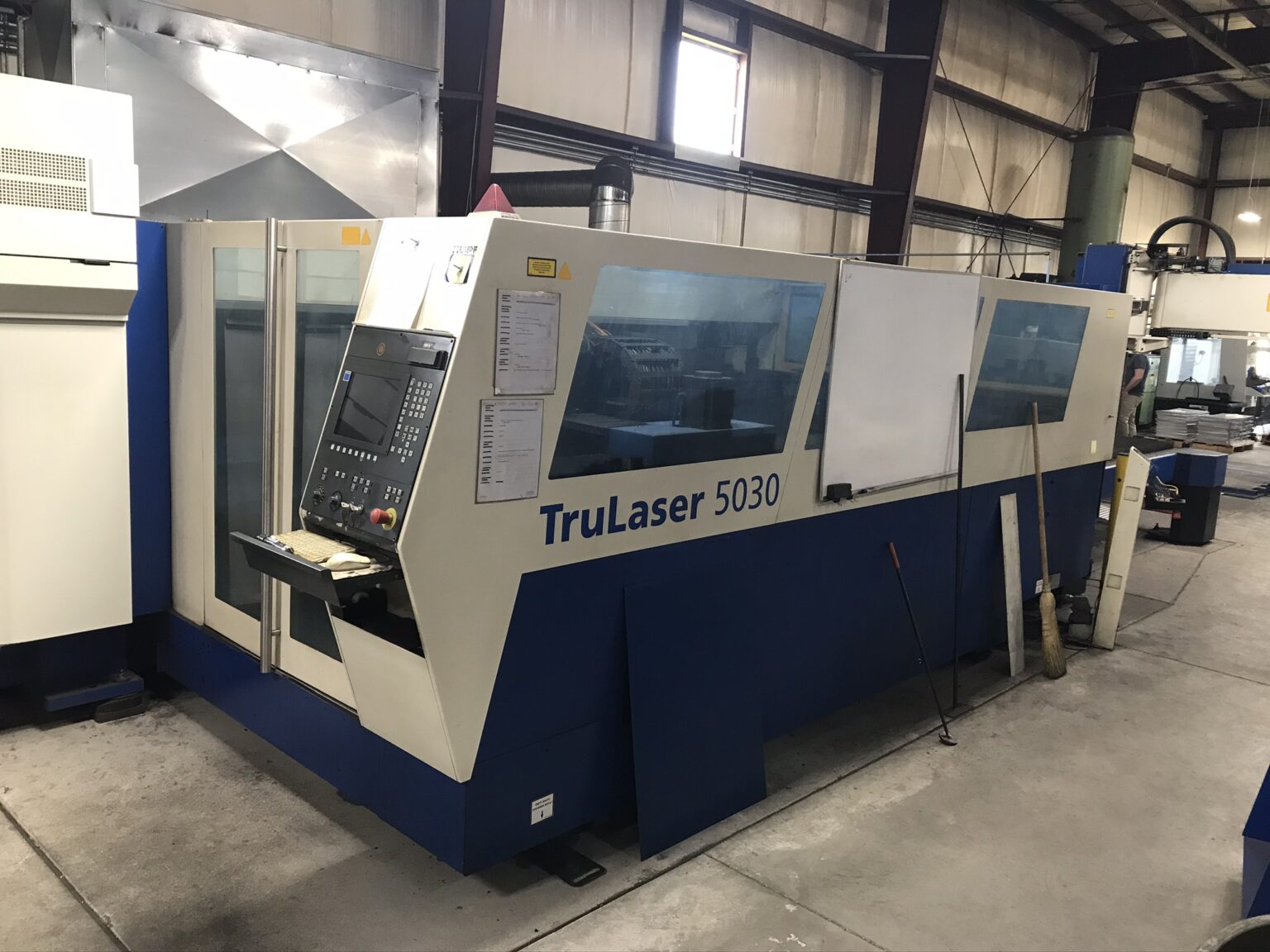

Flat Trumpf Lasers are two-dimensional flat sheet-cutting machines capable of cutting a wide variation of material and thickness. They are equipped with 60″x120″ dual pallet shuttle tables. With the dual pallet shuttle table we are able to unload and load a new sheet for production while the laser is processing the current sheet. The second table automatically switches as soon as the first table is finished processing, keeping a smooth and organized work flow. Our 6000 watt laser allows us to process carbon and stainless steel up to 1.0″ thick and aluminum up to 5/8″, as well as various other materials and alloys.

  • Resonator:
    • Trumpf TruFlow 6000 – C02, Rf Exited 6 kW
  • Cutting Thicknesses:
    • Stainless Steel – 1.000″
    • Nickel alloys – 1.000″
    • Titanium – 0.750″
    • Aluminum – 0.6725″
    • Carbon steels – 1.000″
